Steel / No. 322
Luthier’s OM 12-string 12-F acoustic guitar no. 322
The story
First in the World luthier acoustic guitar with the following innovations:
- Acoustic Tubes inside the guitar neck (Patent – European Patent Office no. EP 3340231 ‘Acoustic Tubes’)
- Top with an 8th-generation WAVE resonator
- Back & sides made in 3rd-generation High-Tech Press
- Bridge with drilled holes (pinless)(Patent – European Union Intellectual Property Office 008177463-002)

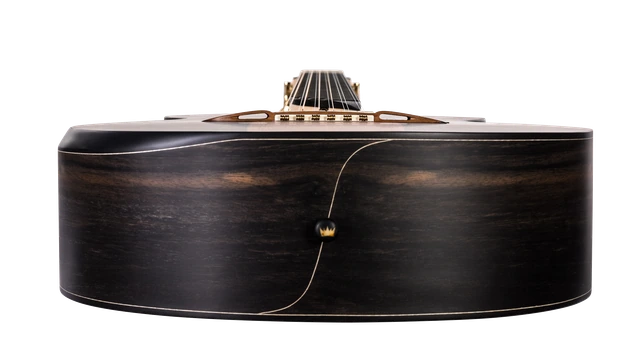

- Sigmoidal Joint (S-shape) of the guitar sides (Patent – European Union Intellectual Property Office 008177463-001)
Specifications

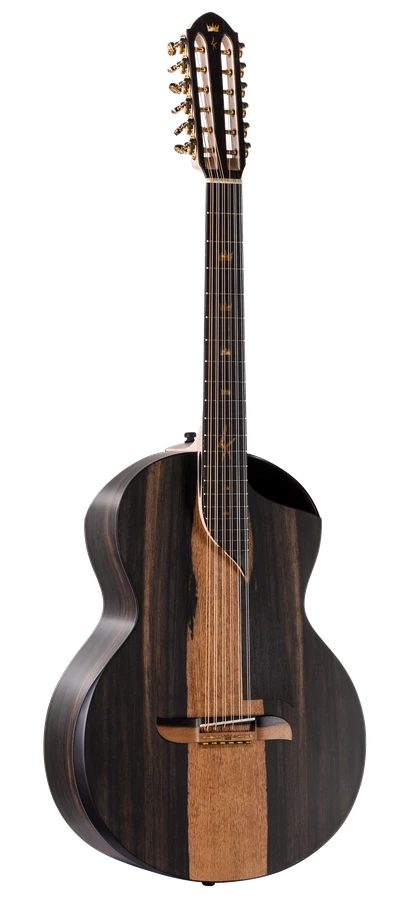

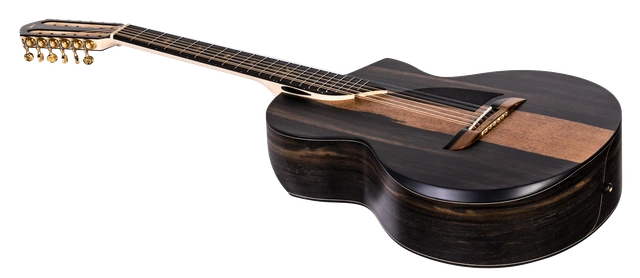

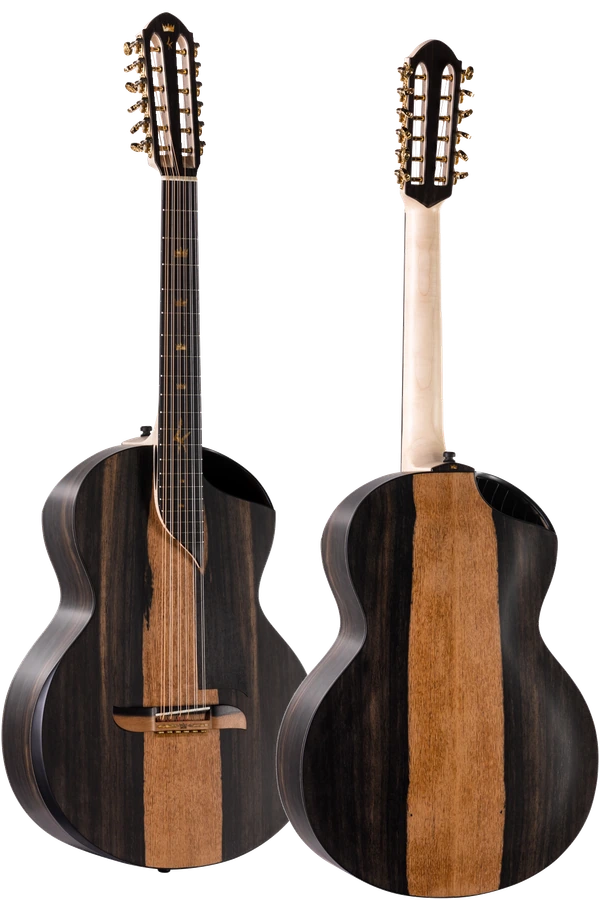

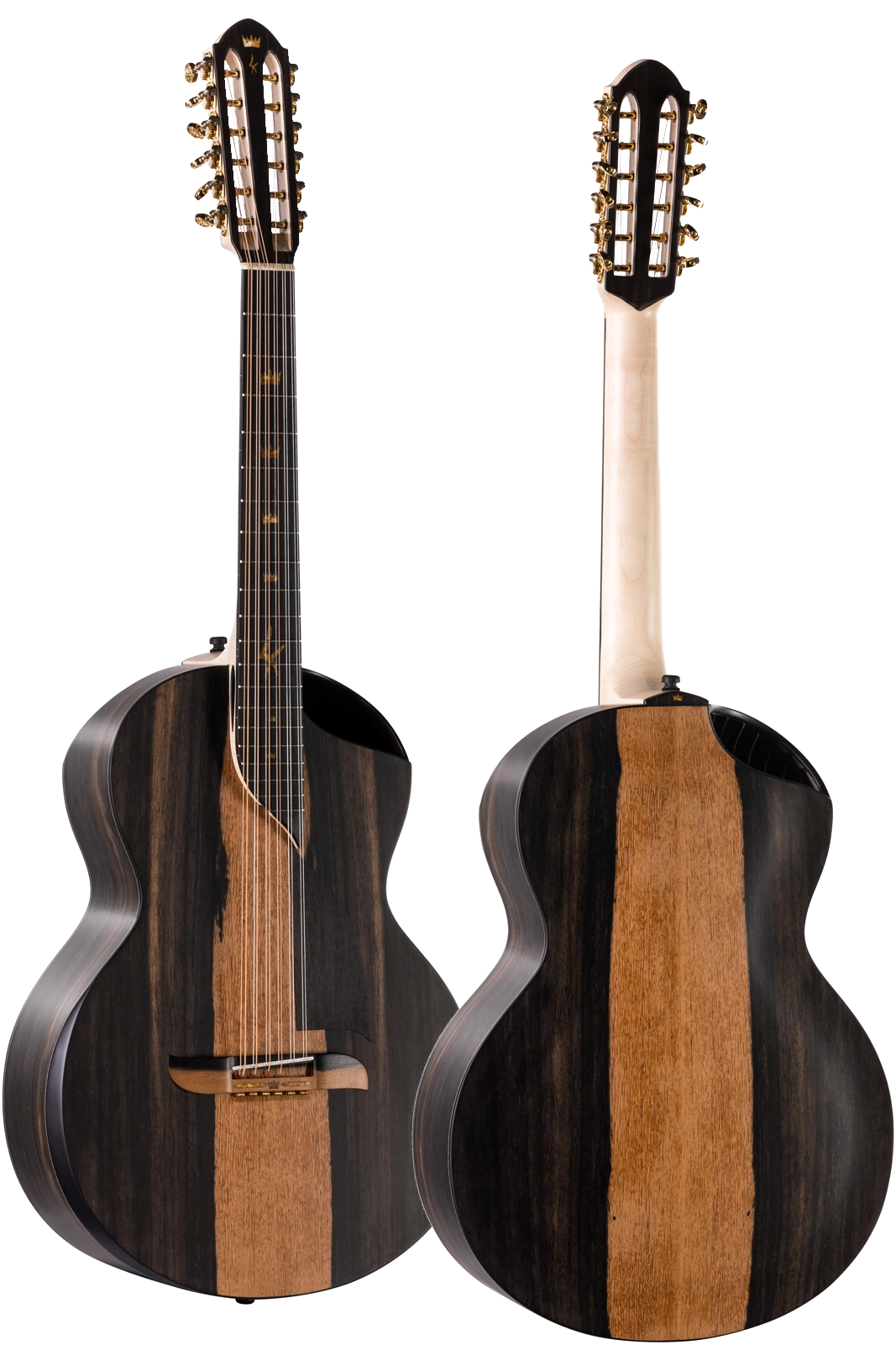

- Body
- Orchestra Model, 12-strings, 12-frets to the body
- Double-Top
- African Ebony with sapwood (top) / Western Red Cedar (bottom) (Master Grade)

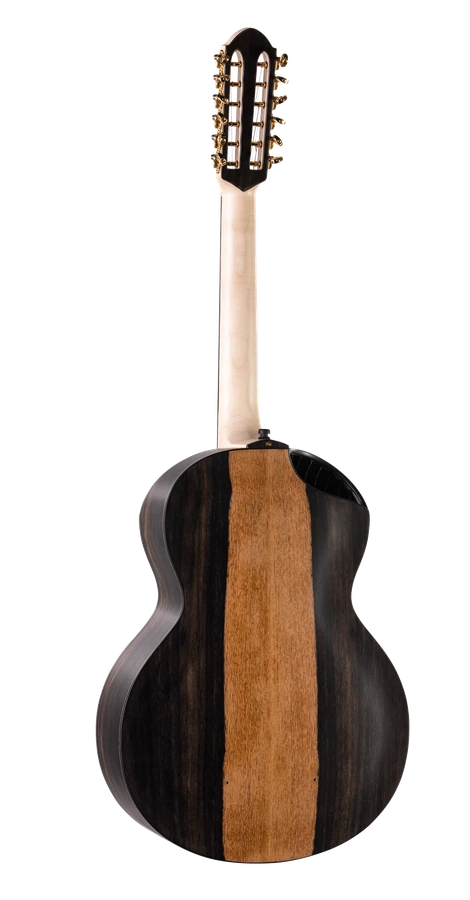

- Back&Sides
- African Ebony with sapwood (Master Grade)
- Neck
- C-shape, made of flamed Sycamore (Master Grade), dual-action double truss rod
- Fingerboard
- Elevated, Ebony (Master Grade), binded, compound radius 16″ (at the nut)

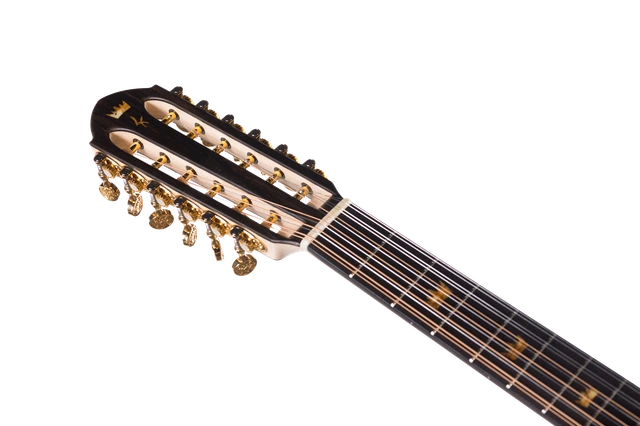

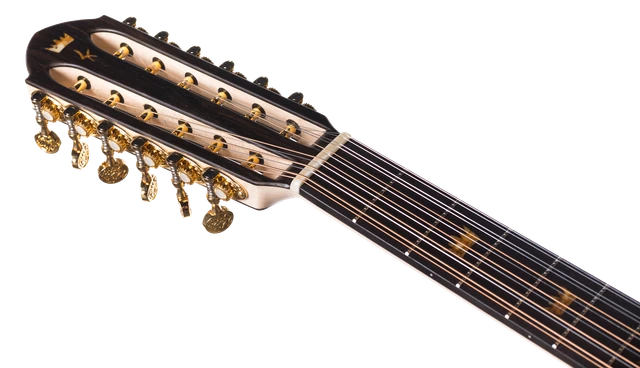

- Type
- Vintage (Slotted)
- Plates
- Ebony (Master Grade)
- Logo
- Natural Baltic amber

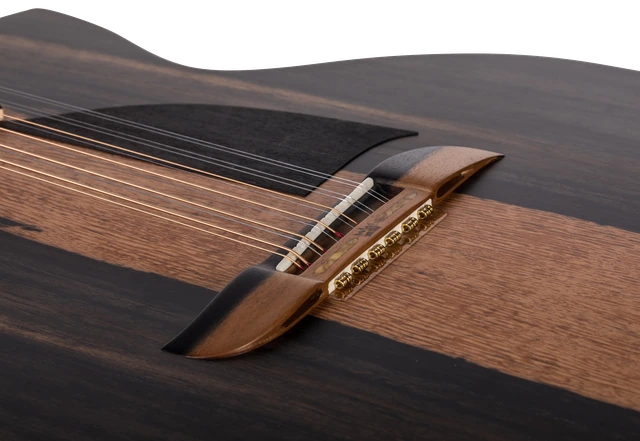

- Bridge
- Ebony with sapwood with drilled holes (Master Grade), hand-shaped, encrusted with natural bone and special inlay in natural Baltic amber
- Soundhole
- Double diagonal, upper-bout, binded
- Heel
- Cup / Ebony (Master Grade)
- Logo
- Natural Baltic amber
- Arm bevel
- Smooth, Ebony, integrated with the guitar body, 20 mm width
- Nut
- Hand-shaped and polished bone, 47 mm (1.85″) width
- Saddle
- Hand-shaped and polished bone, semi-scalloped
- Tuners
- Gold plated single tuning keys, with mother of pearl screw reinforcements. Ratio 1:18
- Binding
- Ebony (Master Grade)
- Fingerboard side dots
- Natural bone ø 1.5 mm at 3, 5, 9, 15, 17 frets, and ø 3 mm at 7, 12 (double) frets
- Frets
- EVO-GOLD (nickel-free)
- Strap buttons
- Ebony with logo inlays in natural Baltic amber
- Scale length
- 25.5” (647,7 mm)
- Finish
- Varnish, highly resonant, anti-static (own recipe), hand-polished, matte-satin
- Pickguard
- Black African Ebony (Master Grade)
- Inlay
- LX signature (11-13 fret) with 3, 5, 7, 9, 15, 17 crown logos made of natural Baltic amber
- Warranty
- Life-time
- Hardcase
- Highest-quality, brand hardcase
