Nylon / No. 338

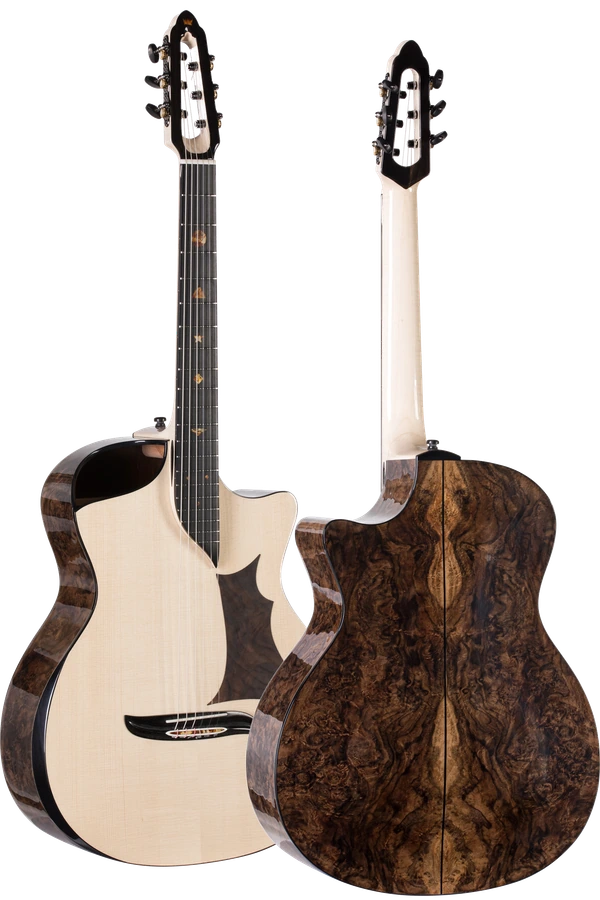

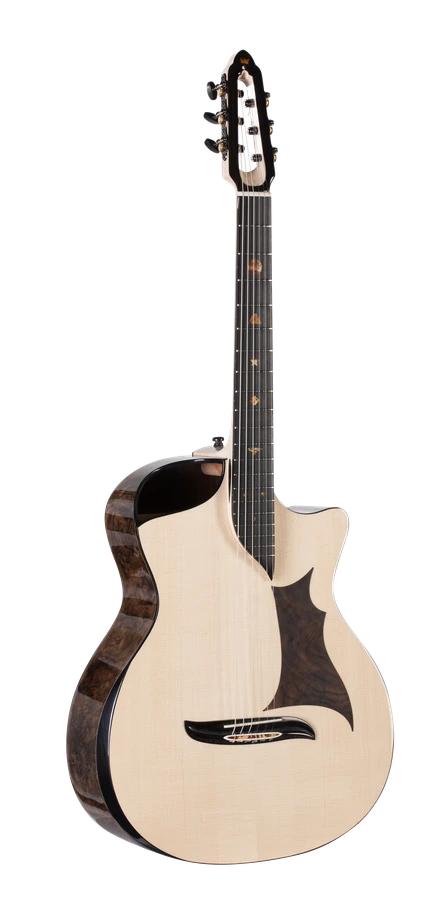

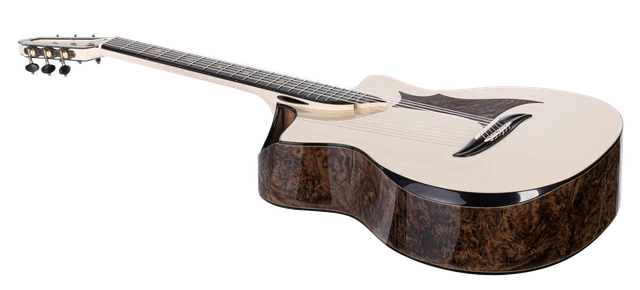

Luthier’s nylon-string jazz guitar no. 338
The story
First in the World luthier nylon-string jazz guitar with the following innovations:
- Acoustic Tubes inside the guitar neck (Patent – European Patent Office no. EP 3340231 ‘Acoustic Tubes’)
- Top with a WAVE resonator
- Back & sides made in High-Tech Press
- Impedance bridge with stiffening wings (Patent: European Union Intellectual Property Office 008177463-003)
- Sigmoidal Joint of the guitar sides (Patent: European Union Intellectual Property Office 008177463-001)
Specifications
- Top
- Alpine Spruce from Tirol (Master Grade)

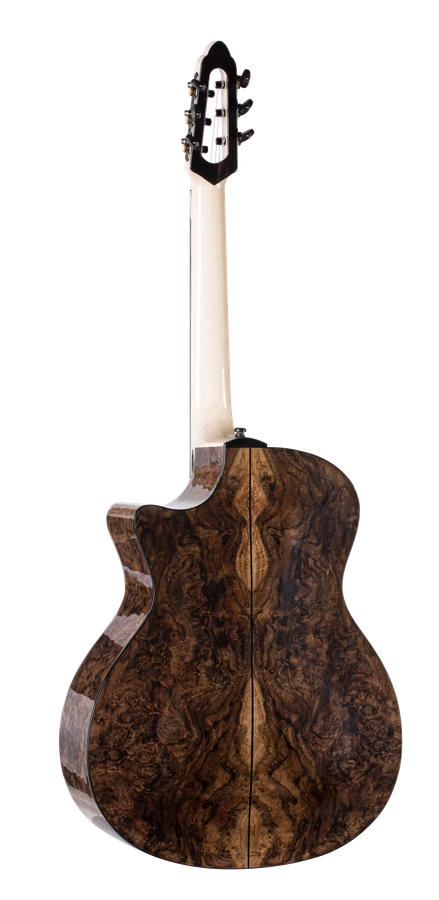

- Back&Sides
- California Black Walnut Burl with sapwood (Master Grade)
- Neck
- C-shape, made of flamed Sycamore (Master Grade), dual-action double truss rod

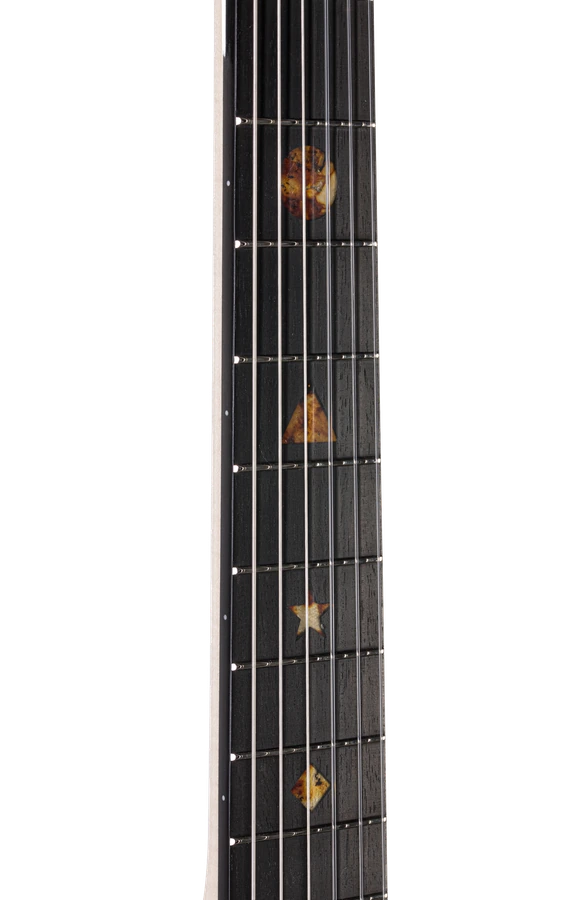

- Fingerboard
- Elevated, Black Ebony (Master Grade), binded, compound radius 16″ (at the nut)
- Type
- Modern (Open)
- Plates
- Black Ebony (Master Grade)
- Logo
- Natural Baltic amber
- Bridge
- Black Ebony Impedance bridge with stiffening wings (Master Grade), hand-shaped, encrusted with natural bone and special inlay in natural Baltic amber
- Soundhole
- Single left upper-bout, binded
- Heel
- Cup / Ebony (Master Grade)
- Logo
- Natural Baltic amber
- Arm bevel
- Smooth, Ebony, integrated with the guitar body, 20 mm width
- Nut
- Hand-shaped and polished bone, 44.5 mm (1 3/4″) width
- Saddle
- Hand-shaped and polished bone, semi-scalloped

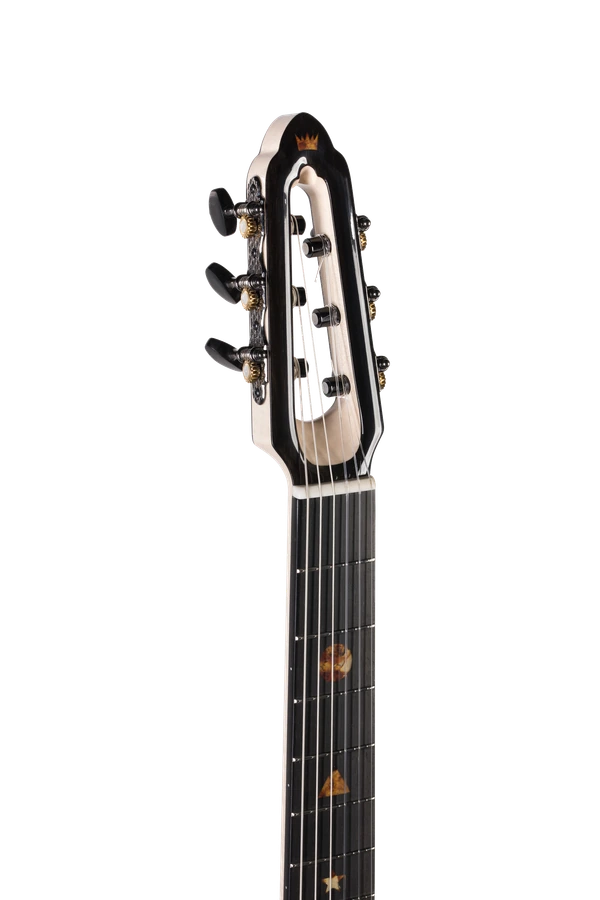

- Tuners
- Ebony knobs and black aluminum rollers and white mother of pearl screw reinforcements, ratio 18:1
- Binding
- Ebony (Master Grade)
- Fingerboard side dots
- Natural bone ø 1.5 mm at 3, 5, 7, 9, 12 (double), 15 frets
- Frets
- Nickel silver 18%
- Strap buttons
- Ebony with logo inlays in natural Baltic amber
- Scale length
- 25.5” (647,7 mm)
- Finish
- Varnish, highly resonant, anti-static (own recipe), hand-polished, high-gloss
- Pickguard
- Custom shape made, California Black Walnut Burl (Master Grade)
- Inlay
- Custom shapes made of natural Baltic amber at 3, 5, 7, 9, 12, 15, 17 frets
- Cutaway
- Venetian (smooth)
- Warranty
- Life-time
- Hardcase
- Highest-quality, brand hardcase
